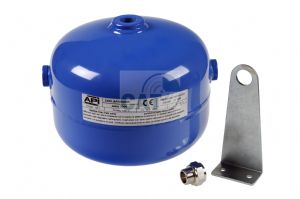

Air Receiver Mini 11 bar 0.5 - 100 litres

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

A range of mini air receivers manufactured to EC Directive 97/23, PED compliant.

Avaliable in standard steel & stainless steel (304)

Air receivers are supplied with a Declaration of Confirmation Certificate (please see datasheet section for example).

Please note: If the receiver is to be mounted, two off mounting brackets and two off bracket/tank connection fittings are required.

Technical Details

Standard:
Working Pressure:		11 Bar
Temperature Range:		-10 deg c to +60 deg c
Finish:		Epoxide powder painting
Manufacturers Part No.:		SBCV

Stainless Steel (304):
Working Pressure:		11 Bar, max 8 bar for 24 l tank
Temperature Range:		-10 deg c to +60 deg c
Manufacturers Part No.:		SBCX

On request:		according to Atex

Datasheets

Air Receiver Mini 11 bar 0.5 - 100 litres datasheet

Air_Reservoirs_SBCV

5SBCX4

12SBCX4

24SBCX4

Mounting Bracket and Fitting

API Conformity Certificate

Prices (Click quantity for more availability info)

	Capacity	Max Working Pressure	Ports	Weight	Order Code	Available	Each
Standard
	0.5 litres	11 Bar	2 x G1/2"	0.885 kg	124131	3	£43.64
	1 litres	11 Bar	2 x G1/2"	1 kg	124132	3	£60.06
	1 litres	11 Bar	4 x G1/2"	1 kg	124133	2	£82.40
	2.5 litres	11 Bar	2 x G1/2"	1.5 kg	120013	4	£57.86
	2.5 litres	11 Bar	4 x G1/2"	1.5 kg	120001	4	£82.53
	5 litres	11 Bar	2 x G1/2"	2.4 kg	120002	3	£81.74
	5 litres	11 Bar	4 x G1/2"	2.4 kg	120003	2	£107.33
	7 litres	11 Bar	2 x G1/2"	2.9 kg	120004	3	£93.50
	7 litres	11 Bar	4 x G1/2"	2.9 kg	120005	2	£116.50
	10 litres	11 Bar	2 x G1/2" + 2 x G3/8"	4.5 kg	120006	2	£206.64
	12 litres	11 bar	2 x G1/2"	4.6 kg	132531	2	£138.91
	12 litres	11 bar	4 x G1/2"	4.6 kg	120007	2	£172.29
	15 litres	11 Bar	2 x G1/2" + 2 x G3/8"	4.9 kg	120008	1	£258.30
	24 litres	11 bar	2 x G1" + 2 G3/8"	12 kg	120009	2	£386.80
	50 litres	11 bar	2 x G1" + 2 G1/2"	17 kg	132532	0	£555.47
	100 litres	11 bar	2 x G2" + 2 x G1/2"	30 kg	132533	0	£874.73
Stainless steel (304)
	5 litres	11 Bar	4 x G1/2"	2.4 kg	124134	0	£766.64
	12 litres	11 Bar	4 x G1/2"	4.6 kg	124135	0	£985.67
	24 litres	8 Bar	4 x G1/2"	12 kg	124136	0	£1,451.13
Accessories
	Mounting bracket	-	-	-	120010	29	£14.64
	Fitting	-	-	-	120012	31	£4.39
	1/2" Drain Valve	Manual	-	-	127421	23	£11.18

(All Prices Exclude VAT)
