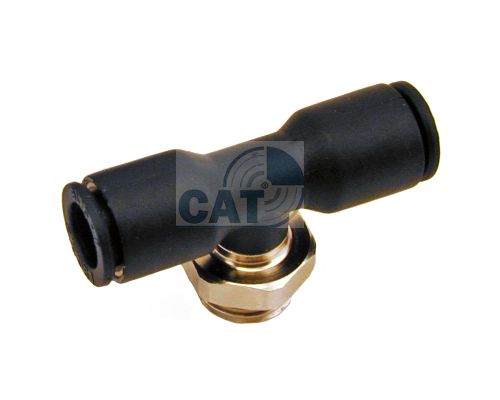

Legris LF3000 Push In Branch Tee - Male BSPP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

Legris LF3000 push in fitting Branch Tee. Available with metric or parallel BSP thread.

The plastic body is orientable about the brass stud end.

Technical Details

Compatible Fluids:	Compressed Air
Working Pressure:	Vacuum to 20 bar
Working Temperature:	-20 Deg C to +80 Deg C

Manufacturers Ref:	3198

Datasheets

Legris LF3000 Push In Branch Tee - Male BSPP datasheet

Click Here

Prices (Click quantity for more availability info)

Tube OD	Thread	Order Code	Available	Each
4mm	M5 x 0.8	101090	10	£6.68
-	G1/8"	101091	10	£5.77
-	G1/4"	147792	0	£7.08
6mm	M5 x 0.8	147793	0	£6.78
-	G1/8"	101097	10	£6.53
-	G1/4"	101098	6	£7.27
8mm	G1/8"	101101	10	£8.12
-	G1/4"	101102	13	£8.42
-	G3/8"	147794	0	£10.57
10mm	G1/4"	101105	8	£11.63
-	G3/8"	101106	12	£12.68
-	G1/2"	147795	0	£14.63
12mm	G1/4"	101109	23	£14.97
-	G3/8"	101110	20	£15.47
-	G1/2"	147796	1	£17.18
14mm	G3/8"	113314	10	£19.92
-	G1/2"	113315	7	£19.98
16mm	G3/8"	124096	0	£30.97
-	G1/2"	124097	0	£31.42

(All Prices Exclude VAT)
