Legris LF3000 Push In Run Tee - Male BSPP

Printer Friendly Page
Skip to Technical Details
Skip to Description
Skip to Prices

Description

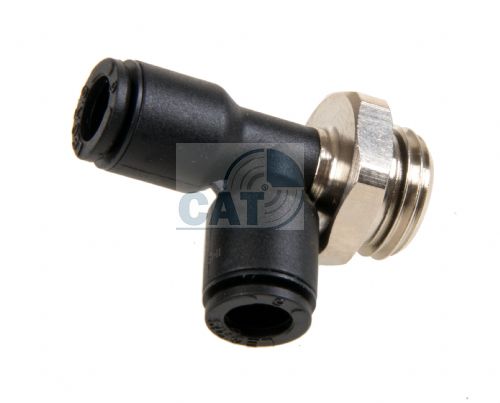

Legris LF3000 push in run tee with metric or parallel BSP thread and suitable for metric od tubing.

The plastic boy is orientable about the brass stud end.

Technical Details

Compatible Fluids:	Compressed Air
Working Pressure:	Vacuum to 20 bar
Working Temperature:	-20 Deg C to +80 Deg C

Manufacturers Ref:	3193

Datasheets

Legris LF3000 Push In Run Tee - Male BSPP datasheet

Click Here

Prices (Click quantity for more availability info)

Tube OD	Thread	Order Code	Available	Each
4mm	M5 x 0.8	101120	20	£6.70
-	G1/8"	101121	9	£6.08
-	G1/4"	147800	0	£7.18
6mm	M5 x 0.8	147801	0	£7.58
-	G1/8"	101127	15	£6.32
-	G1/4"	101128	14	£7.27
8mm	G1/8"	101131	20	£7.67
-	G1/4"	101132	6	£7.78
-	G3/8"	147802	0	£10.33
10mm	G1/4"	101135	13	£11.47
-	G3/8"	101136	13	£13.08
-	G1/2"	147803	5	£14.30
12mm	G1/4"	101139	7	£15.05
-	G3/8"	101140	19	£15.15
-	G1/2"	147101	2	£17.68
14mm	G3/8"	113316	5	£18.58
-	G1/2"	113317	5	£19.78
16mm	G3/8"	124094	0	£23.50
-	G1/2"	124095	2	£24.05

(All Prices Exclude VAT)
